4610079
Sealing section PVC/rubber 2-4MM sealing lip on top S.U./25M

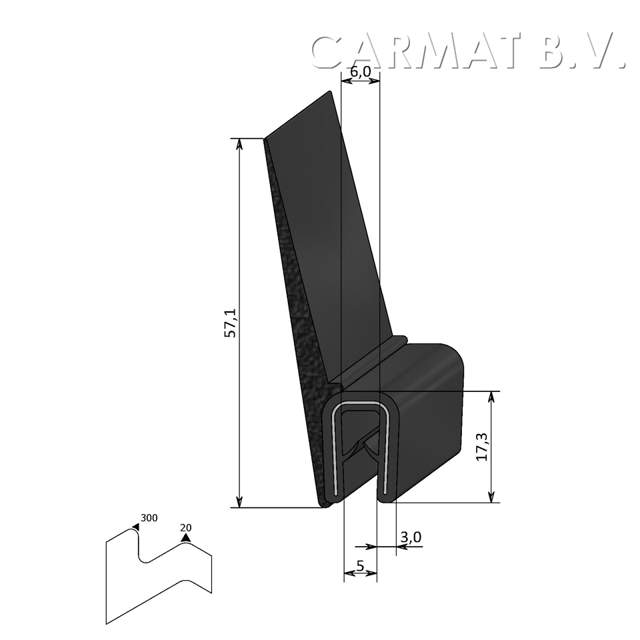

This sealing section is made of PVC with a rubber gasket and has a steel insert. Because of the high bending radius of this sealing profile, it is easy to bend around corners. The profile is easy to fasten and has two functions: protecting from sharp edges and sealing. It is temperature resistant from -30°C up to +70°C. See "downloads" for the complete datasheet. A digital drawing as a .dxf file can be send upon request.
- Stock item
- Product number
- 4610079
- Unit of Measure
- Other
- Kleur
- Black
- Type
- Sealing profile with sealing lip on top
- Maatvoering
- Clamping range 2-4 mm
- Uitvoering
- Steel insert
- Design
- Other
- Materiaal
- PVC/EPDM
- Afmeting(en)
- 0.00 MM x 0.00 MM x 0.00 MM
- Levertijd
- Stock item
- Korting
- n/a
Downloads
| Name | Download | File type | |
|---|---|---|---|
|
datasheet-4610079.pdf | 99 KB |
