4610025
Edge protector PVC 1 MM grey S.U./100M
This edge protector is made of PVC and has a steel insert. Because of the high bending radius of this finishing profile, it is easy to bend around corners. The profile is easy to fasten and protects from sharp edges. It is temperature resistant from -40°C up to +90°C. See "downloads" for the complete datasheet. A digital drawing as a .dxf file can be send upon request.
- Stock item
- Product number
- 4610025
- Unit of Measure
- Other
- Kleur
- Grey
- Type
- Edgeprotector standard
- Maatvoering
- Clamping range 1 mm
- Uitvoering
- Steel insert
- Design
- Standard Height
- Materiaal
- PVC
- Afmeting(en)

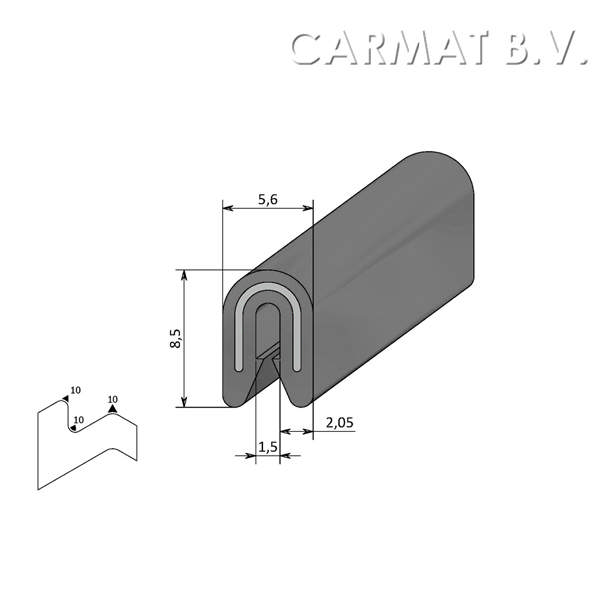

- 5.60 MM x 8.50 MM x 0.00 MM
- Levertijd
- Stock item
- Korting
- n/a
Downloads
| Name | Download | File type | |
|---|---|---|---|
|
datasheet-4610025.pdf | 118 KB |
